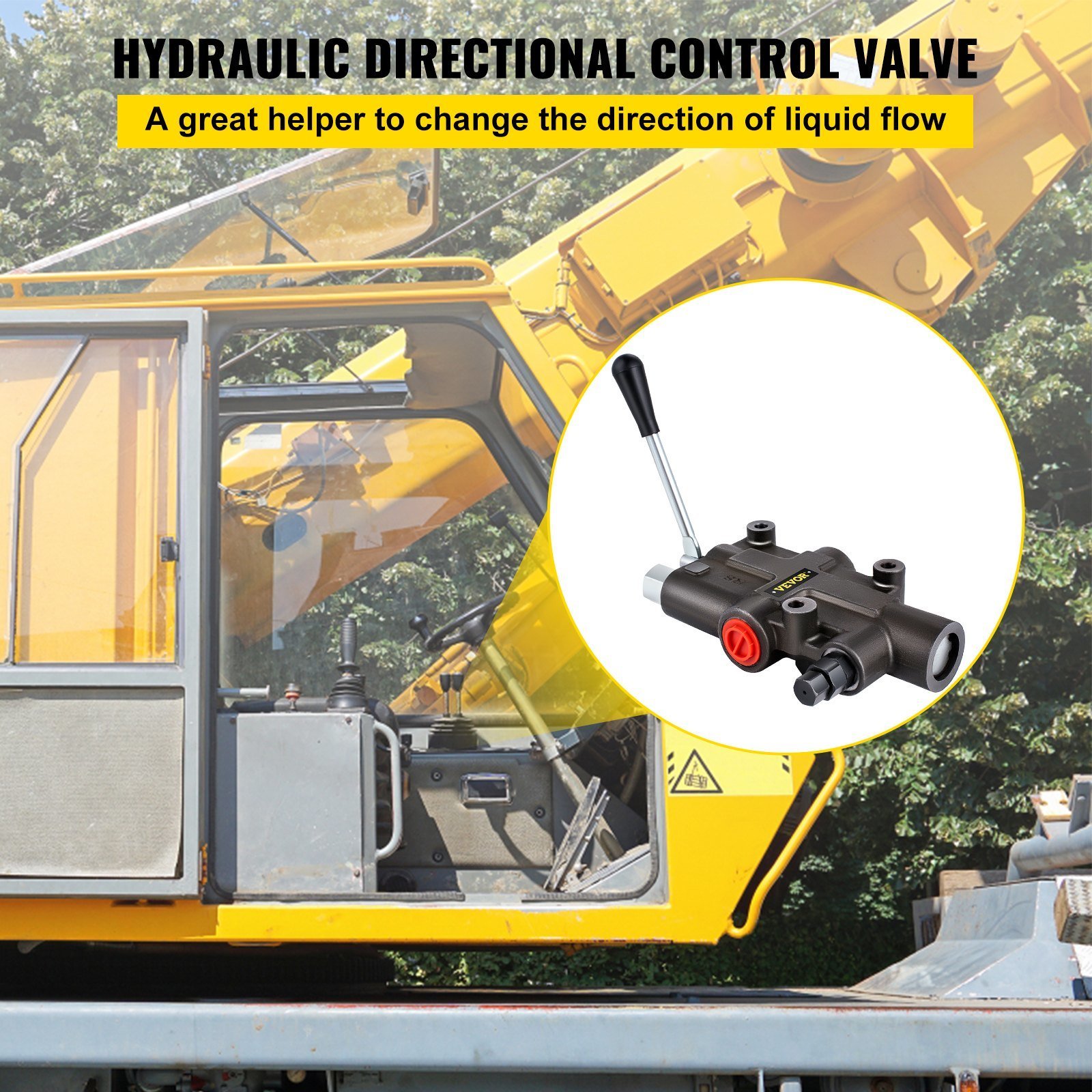

VEVOR Hydraulic Directional Control Valve, 1 Spool Hydraulic Spool Valve, 21 GPM Hydraulic Loader Valve, 3625 PSI Directional Control Valve, Hydraulic
Highlights:

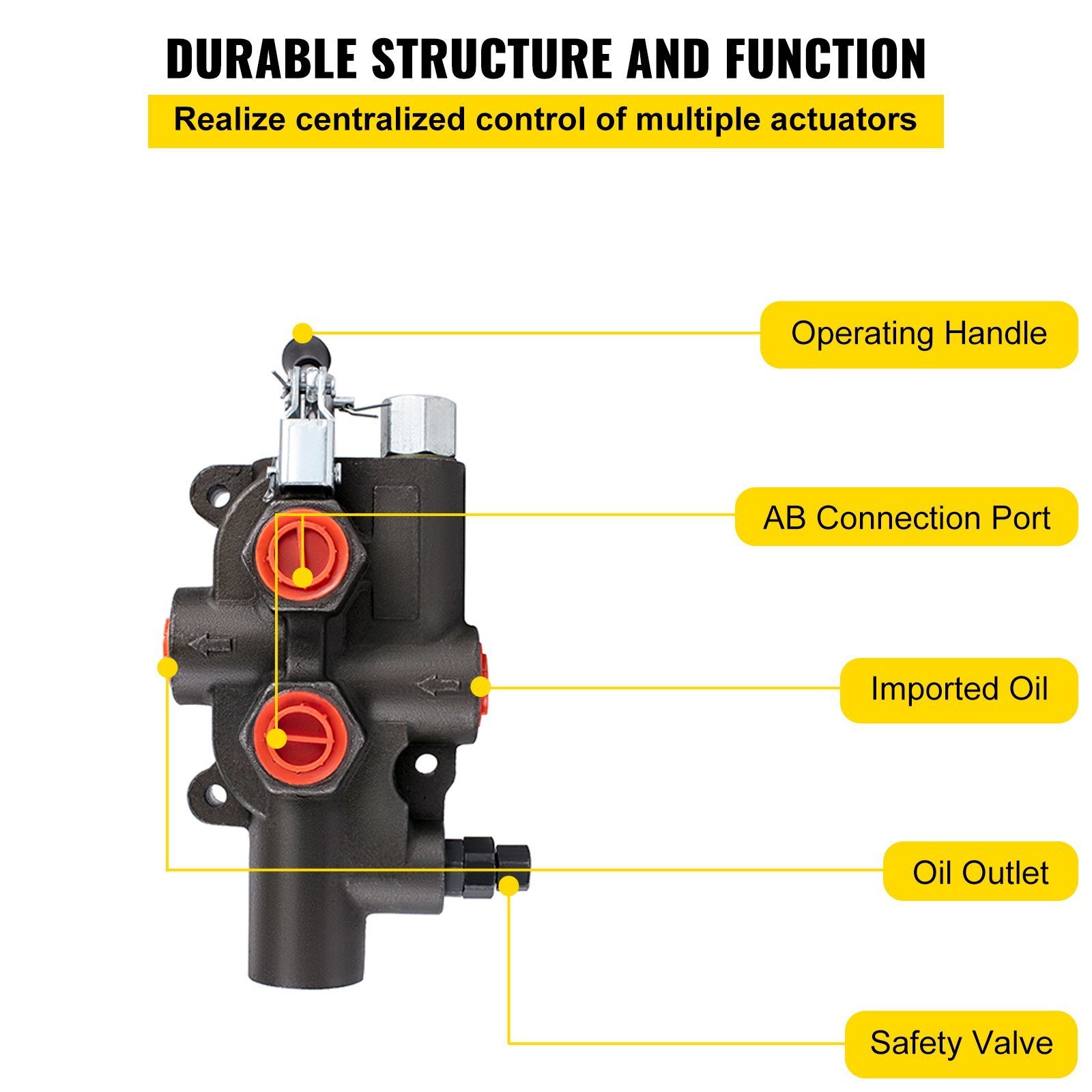

1.Hydraulic Spool Valve: Equipped with 1 spool and 1/2" BSPP P port, A port, B port. 3/4" BSPP T port, N port. The maximum pressure of this hydraulic is 3625 PSI, and the maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.
2.Automatically Reset: The standard spool is spring-returned and can be reset to the neutral position. In addition, there is a spring at the bottom of the handle that makes the joystick easy to control.
3.Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
4.Compact Structure: 1 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.
5.Widely Used: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.
Details:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1.Hydraulic Spool Valve: Equipped with 1 spool and 1/2" BSPP P port, A port, B port. 3/4" BSPP T port, N port. The maximum pressure of this hydraulic is 3625 PSI, and the maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.
2.Automatically Reset: The standard spool is spring-returned and can be reset to the neutral position. In addition, there is a spring at the bottom of the handle that makes the joystick easy to control.
3.Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
4.Compact Structure: 1 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.
5.Widely Used: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.
Details:

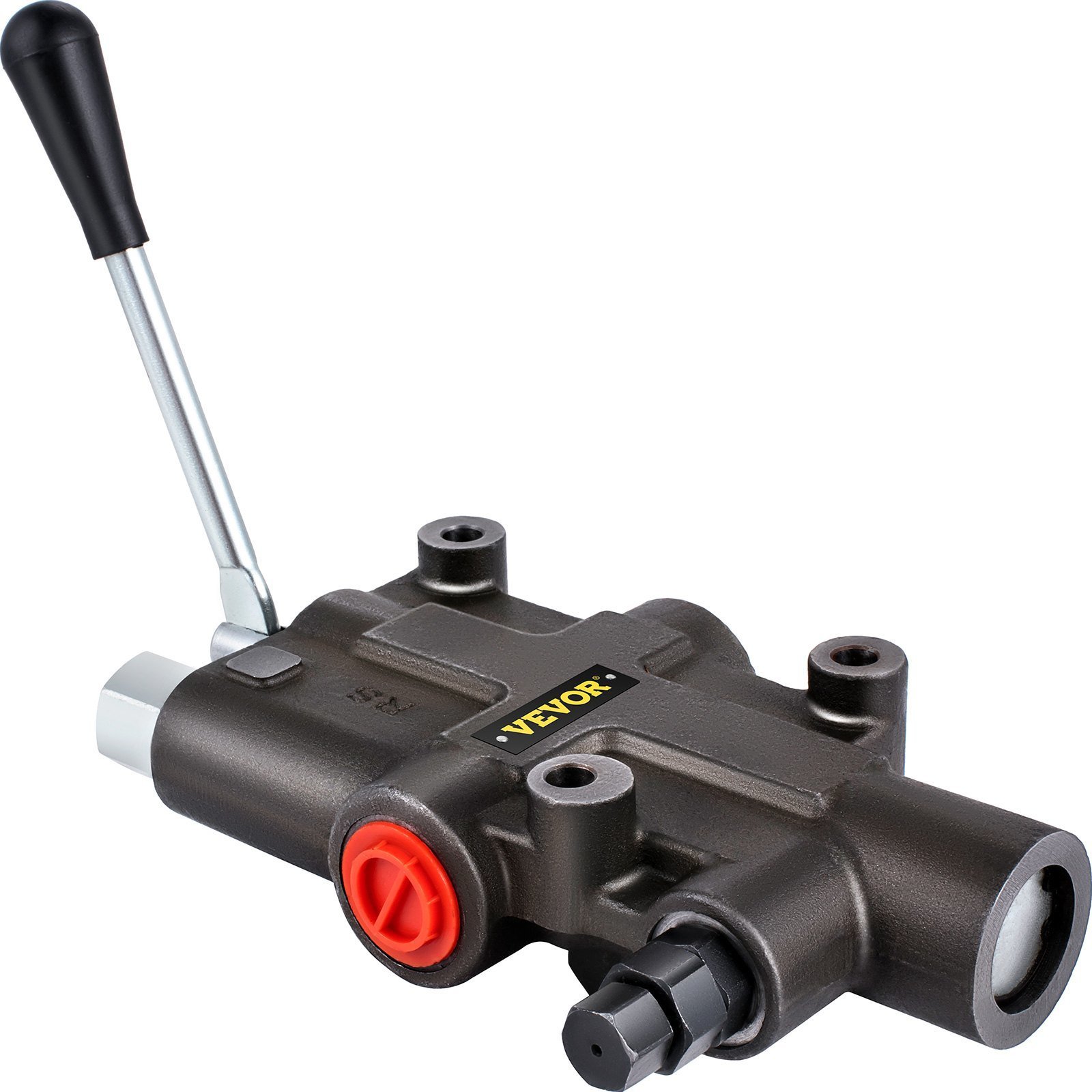

1 Spool 21gpm Hydraulic Directional Control Valve
Our hydraulic spool control valve has been specifically designed for use in mobile hydraulic applications. It is compact but has a flow capacity of 21GPM at 3625psi. This valve is an alternative to currently available monoblocks. It is supplied with an adjustable relief valve and levers as standard.
- Hydraulic Spool Valve
- Automatically Reset
- Great Inner Valve
- Compact Structure
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Hydraulic Loader Valve
This hydraulic directional control valve manages and directs hydraulic oil flow between hydraulic pumps and hydraulic cylinders, motors, tanks, etc.
Neutral Spring-Center
The spring-returned spool can be reset to the neutral position, and the spring makes the joystick easy to control.

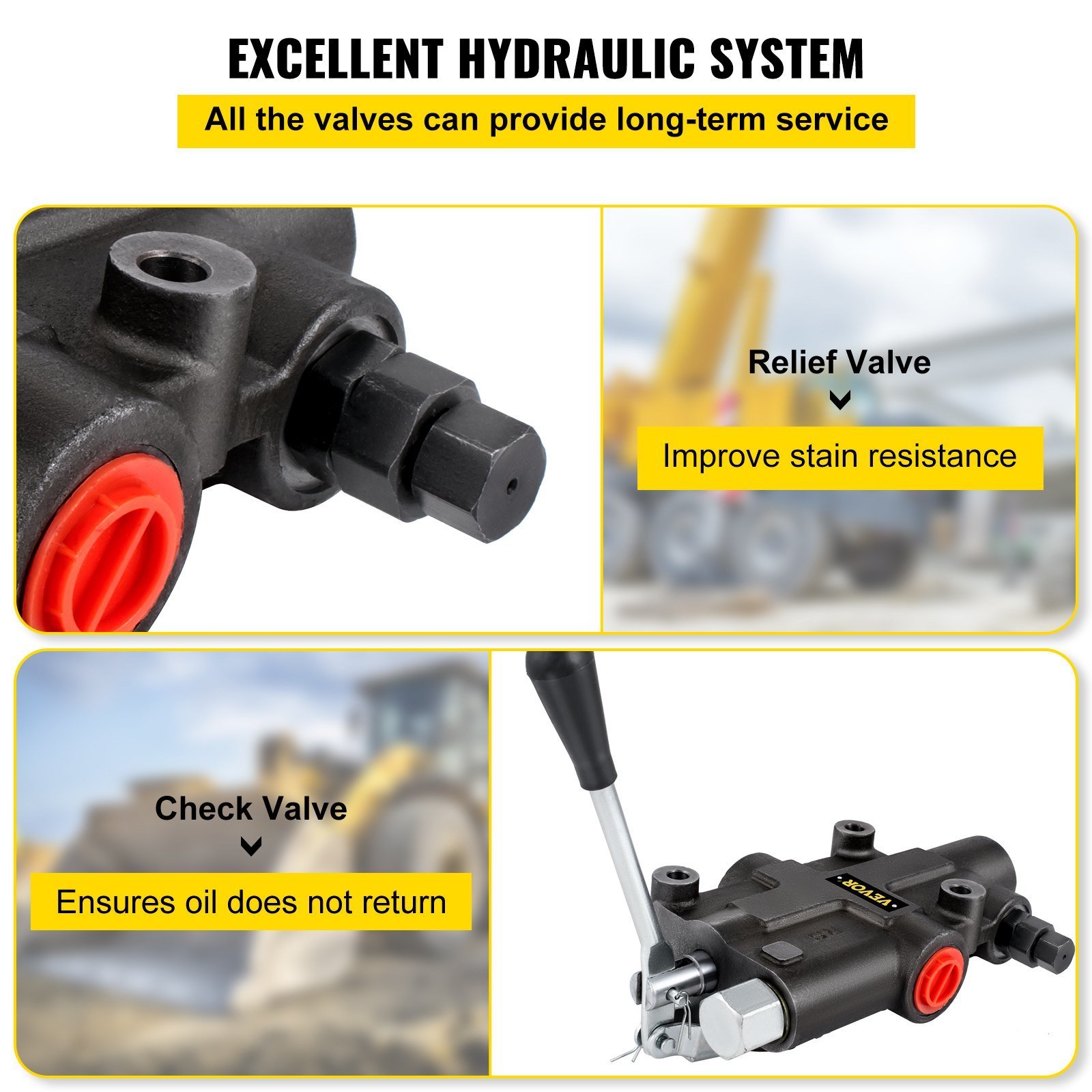

Inner Check/Relief Valve
The valve body's check valve and overflow valve can help you complete your work better and securely.
Durable Construction
Durable iron construction, precision ground, and rigid chrome-plated spools provide long-term usage.

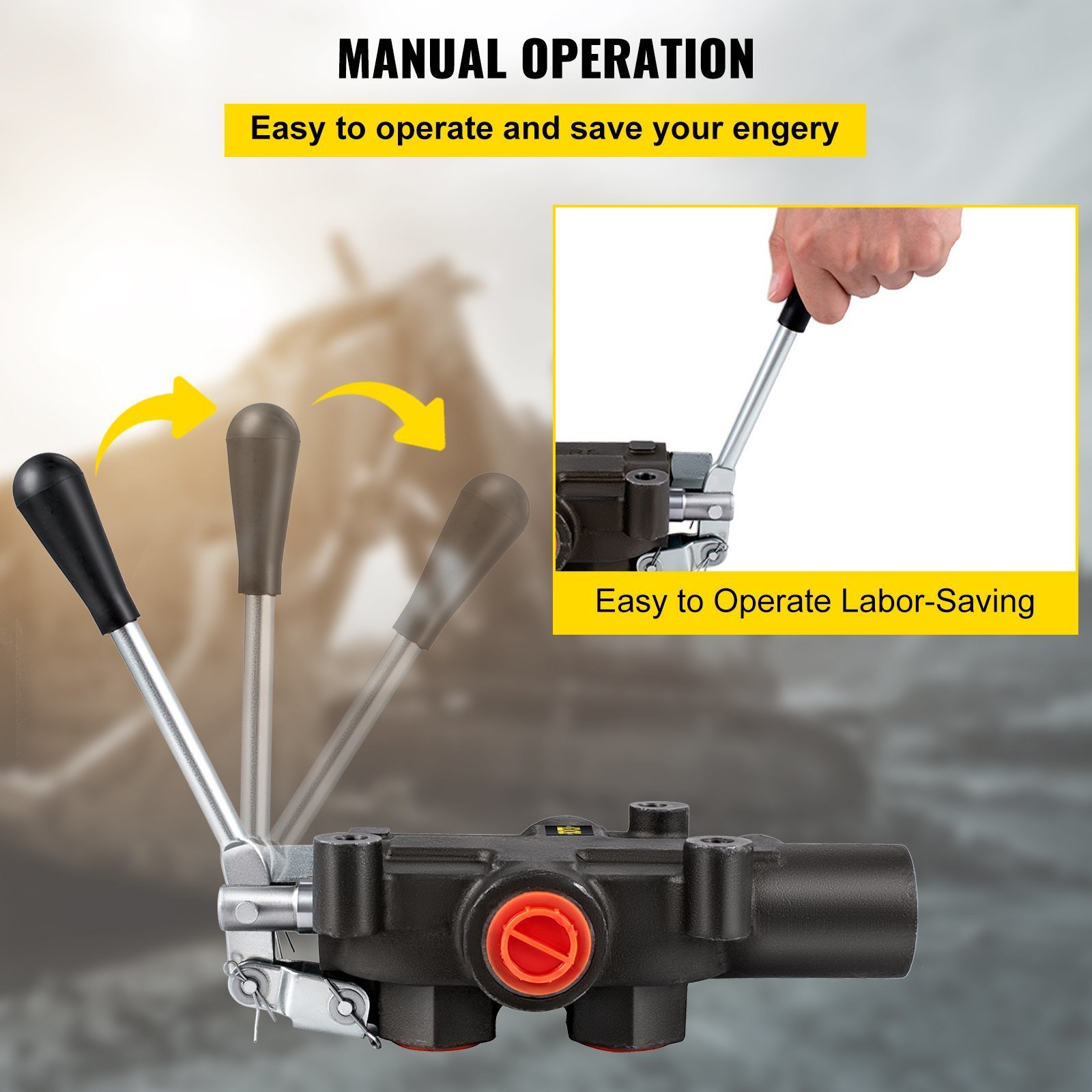

Compact Handle Design
The control handle is convenient to operate, which has a spring on the bottom of the handle that resets it to the neutral position.
Wide Application
Ideal for use in forklifts, small factory machinery, small agricultural machinery, small hydraulic presses, punching machines, and other processing equipment.
Specifications
- Model: 121GPM3625

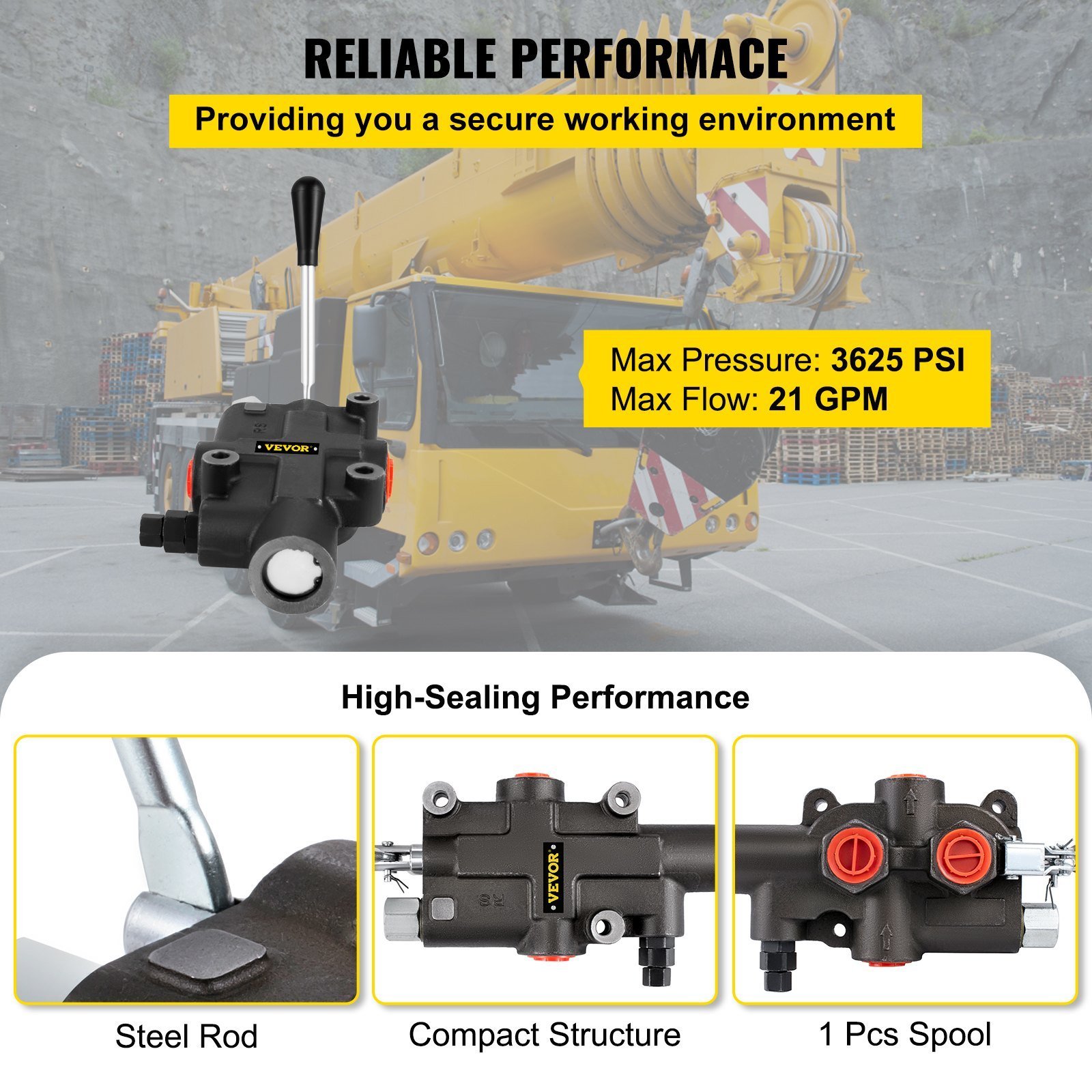

- Max operating pressure: 3625 PSI
- Flow Rating: 21gpm
- Relief Valve: Adjustable
- Center system: Open
- Spool Count: 1-Spool
- Valve Operation: Manual
- A, B ports: 1/2" BSPP
- T, N port: 3/4" BSPP
- P port: 1/2" BSPP
Package Content
- 1 x 1 Spool Hydraulic Directional Control Valve
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
1 Spool 21gpm Hydraulic Directional Control Valve
Our hydraulic spool control valve has been specifically designed for use in mobile hydraulic applications. It is compact but has a flow capacity of 21GPM at 3625psi. This valve is an alternative to currently available monoblocks. It is supplied with an adjustable relief valve and levers as standard.
- Hydraulic Spool Valve
- Automatically Reset
- Great Inner Valve
- Compact Structure
Hydraulic Loader Valve
This hydraulic directional control valve manages and directs hydraulic oil flow between hydraulic pumps and hydraulic cylinders, motors, tanks, etc.
Neutral Spring-Center
The spring-returned spool can be reset to the neutral position, and the spring makes the joystick easy to control.
Inner Check/Relief Valve
The valve body's check valve and overflow valve can help you complete your work better and securely.
Durable Construction
Durable iron construction, precision ground, and rigid chrome-plated spools provide long-term usage.
Compact Handle Design
The control handle is convenient to operate, which has a spring on the bottom of the handle that resets it to the neutral position.
Wide Application
Ideal for use in forklifts, small factory machinery, small agricultural machinery, small hydraulic presses, punching machines, and other processing equipment.
Package Content
- 1 x 1 Spool Hydraulic Directional Control Valve
Specifications
- Model: 121GPM3625
- Max operating pressure: 3625 PSI
- Flow Rating: 21gpm
- Relief Valve: Adjustable
- Center system: Open
- Spool Count: 1-Spool
- Valve Operation: Manual
- A, B ports: 1/2" BSPP
- T, N port: 3/4" BSPP
- P port: 1/2" BSPP
